Build Serin Link from the kit and a separately purchased display, then install firmware.

Kit options

The kit has two options: a kit with a printed stand and bottom cap, and a kit with an STL file for printing these parts. Both options include the assembled PCB, screws, Allen key, and silicone pad. The USB data cable and power adapter are optional accessories.

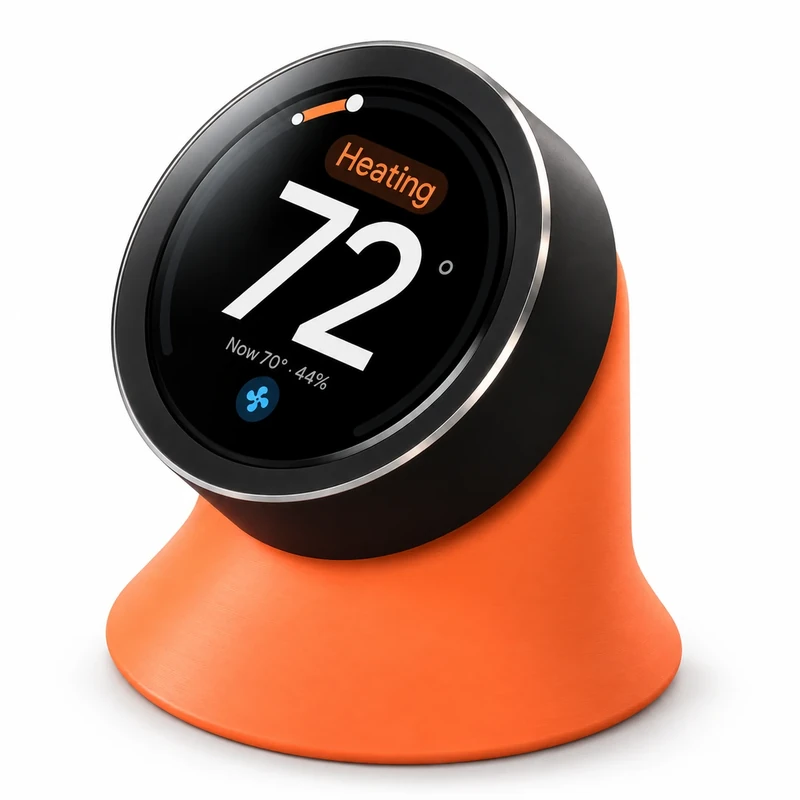

Assembled Serin Link. Display purchased separately. Enlarge image.

Build sequence

If your kit includes the printed stand, skip Stand printing.

Before assembly

RequirementsCheck the display, controller, computer, and power requirements. Parts and toolsCheck the kit contents, separately purchased parts, and tools. Stand printingPrint the stand and bottom cap if you chose the file option.

Assembly

Display installationSecure the display in the stand with three screws and the keyhole mounts. PCB installationRoute the FPC cable through the PCB, close the connector latch, and secure the PCB. Bottom cap and silicone padFit the snap-fit bottom cap and apply the self-adhesive pad.

Setup

Firmware installationInstall Serin Link firmware through the external USB-C port.

Help

TroubleshootingCheck common assembly and startup problems, or contact support.

After assembly

For everyday controls, see the user manual. For kit problems, see Troubleshooting.
